4mm PVDF coating Aluminum Composite Panel Silver and Wooden for
outdoor building facade cladding
Color Aluminum Composite Panel ACM for printing Signage Ads
decoration
| Item | Standard | Options |
| Width | 1220mm | 1000mm, 1500mm, or range from1000mm-1570mm |
| Length | 2440mm | 3050mm, 5000mm, 5800mm, or any
other length that can be put into a 20GP
container |
| Panel Thickness | 3mm, 4mm | 2mm, 5mm, 8mm , or range from 1.5mm-8mm |
Aluminium Thickness
(mm) | 0.5mm,0.4mm, 0.3mm, 0.21mm, 0.15mm, or range from 0.03mm-0.60mm |
|
| Surface Finish | Brushed, Maple, Mirror , PE, PVDF, FEVE Coating |
| Color | Metallic Color, Gloss Color, Pearl, Mirror, Maple,Brushed, etc |
| Weight | 3-4.5kg/Square meter, based on 3mm panel thickness
4-4.5kg/Square meter, based on 4mm panel thickness |
| Application | Interior / Exterior / signage /industries application |
| Certification | ISO 9001:2000, ISO9001:2008, SGS ,CE,Rohs, Fireproof Certification |
| Leading Time | 8-15 days after receive your orderr |
| Packing | Wooden Pallet or Wooden case or Nude Packing |

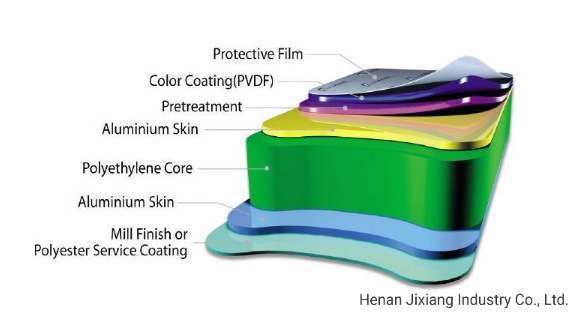

Structural Section of aluminum composite panel
Aluminum Composite Panel is compounded by multilayer materials, the
surface and back covered by high strength aluminum alloy sheet, the
core material is non-toxic low density polyethylene(PE) , on the
surface of aluminum composite panel covered by protective film.
Characteristic of ACP
ALUDONG adopt super quality aluminum , high strength , greatly enhance the
panel’s strength to ensure the perfect effect in wind load
resistance, shakeproof.Superior weather-resistance and ultraviolet
(UV) resistance, acid-resistance and alkli-resistance.
No pollution to the enviroment , it is green building decorative
material, No changes in surface coating .
ALUDONG aluminum composite panel are composite of aluminum and plastic
,which is lighter than other decorating material.
The non inflammable external aluminum sheets offer protection to
polyethylene core material, and cut off heat conduction in the
initial stages of combustion, with flame resistance up to
international standard.
ALUDONG with the use of quality coating , aluminum composite panels are
dispensed with longtime maintenance; because it is self-cleaning,
they can be cleaned by neutral cleaning agent and clean water, and
come out to be fairly new after cleaned.
If requested by customer, aluminum -plastic panels can be made to
different colors and shapes to meet the original design of
architects, thus bring perfect decorating effect.
ALUDONG fluorocarbon coated aluminum composite panels are featured by high
durability ,good resistance against weather, high temperature,
wear and pollution.
ACP Coating Features
- Polyester coating
- PE coating has good adhesion to the material. The color coated
steel plate is easy to process, cheap, and has many products, and
the choice of color and luster is great. In the general environment
directly exposed, the corrosion period can be as long as 7 to 8
years.
- Lacquering
- ALUDONG surfaces the coating is high-quality lacquering systems , which
own good chemical causticity resistance, and abrasion resistance
and so on. For externel wall decoration ,use PVDF Coating and FEVE
Coating is better choice, because the coating systems have
excellent surface durability .which can keep 10-15 years.
- Nano-coating
- ALUDONG Nano coating is a special clear lacquering system which has
excellent self-cleaning characteristics, the total dry film
thickness shall be 35 micron minimum consisting of a conversion
coating ,an inhibititive primer, lumiflon-based fluorocarbon and
clear coating.
- Chameleon colors coating
- With pearl talc in PVDF paint (70% PVDF), the pigment type and
viewing angle distinguish it with other coating .The different wave
lengths of light reflected ,refracted and diffracted to the
audience makes an ever-changing color gradient with iridescent
highlights.
- Nacreous coating
- Nacreous coating is three-coat three-bake system . The thickness is
35 micron minimum consisting of a conversion coating , an
inhibitive primer, lumiflon-based fluorocarbon coating and nacreous
coating. The surface glossiness is around 90 degree. It is as
excellent choice for the places which highly demand the surface
glossiness.

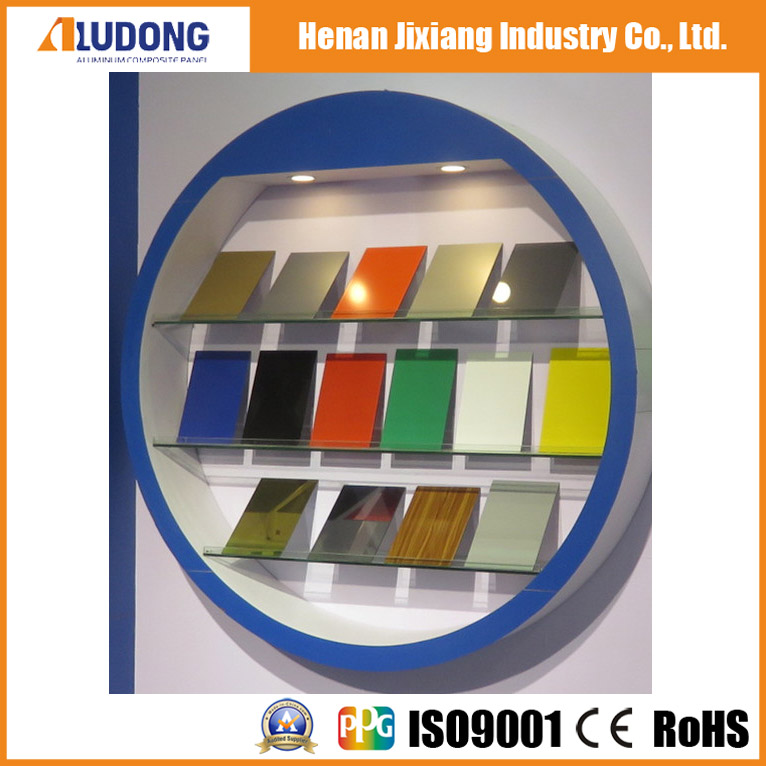

- Variety of Colors
- From a wide range of standard colors, customers can select both
metallic colors and solid colors. tailor-made colors are available
on request.
The gloss for solid and for metallic colors is in the range of
30%-40% according to Gardner Scale which is most suitable for
architectdner applications. For special effect colors, the gloss is
in the range of 70%-80% according to Gardner Scale. Due to their
high gloss, panels coated in special effect colors need special
care in the design and during fabrication and installation.
Application of Aluminum compsite panel
It can be widely used
1. Curtain wall,
2. Internal and external wall,
3. Ceiling,
4. Eaves,
5. Balcony,
6. Gallery,
7. Exhibitions,
8. Partitions,
9. Advertise fascia,
10. Showing and display platform.
